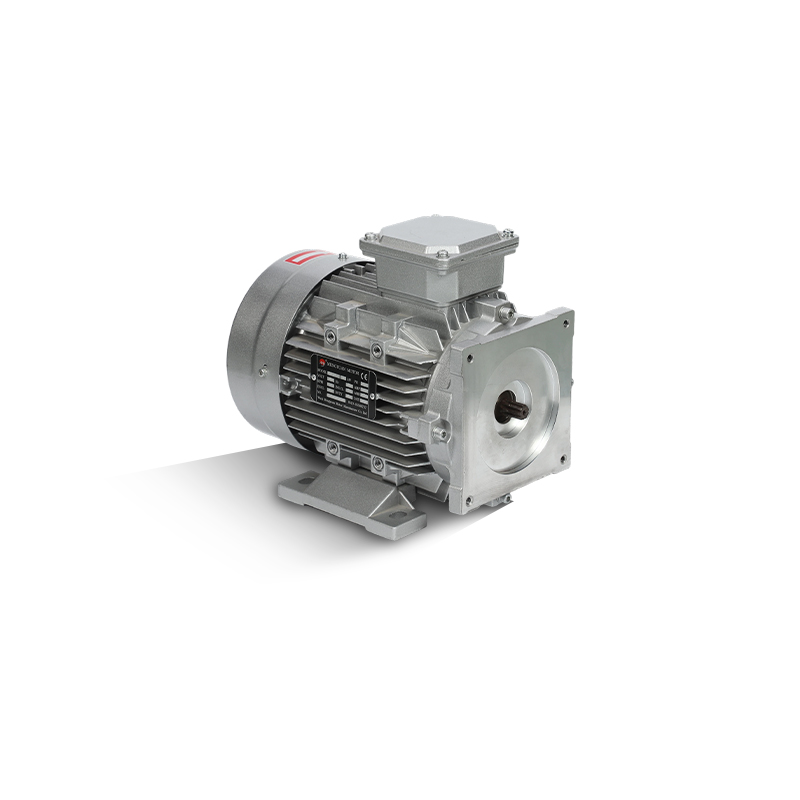

CBBD Hydraulic Power-Pack Motor

CBBD Hydraulic Power-Pack Motor converts electrical energy into mechanical energy efficiently and stably, driving the hydraulic pump to generate hydraulic power. It is adaptable to various complex working conditions, featuring high output torque and a wide speed regulation range.

General Machinery Industry: Hydraulic Pump


Serving as the core component of compact hydraulic systems (Power Packs), this motor is engineered with a design philosophy centered on exceptional energy conversion efficiency and flexible structural configuration. In terms of performance specifications, the motor boasts a rated efficiency reaching up to 83%, effectively minimizing heat accumulation during the operation of compact equipment. It is available in two configurations—2-pole (high speed, approx. 2840 RPM) and 4-pole (high torque, approx. 1410 RPM)—enabling engineers to precisely select the power parameters that best match the specific flow and pressure requirements of the hydraulic system.

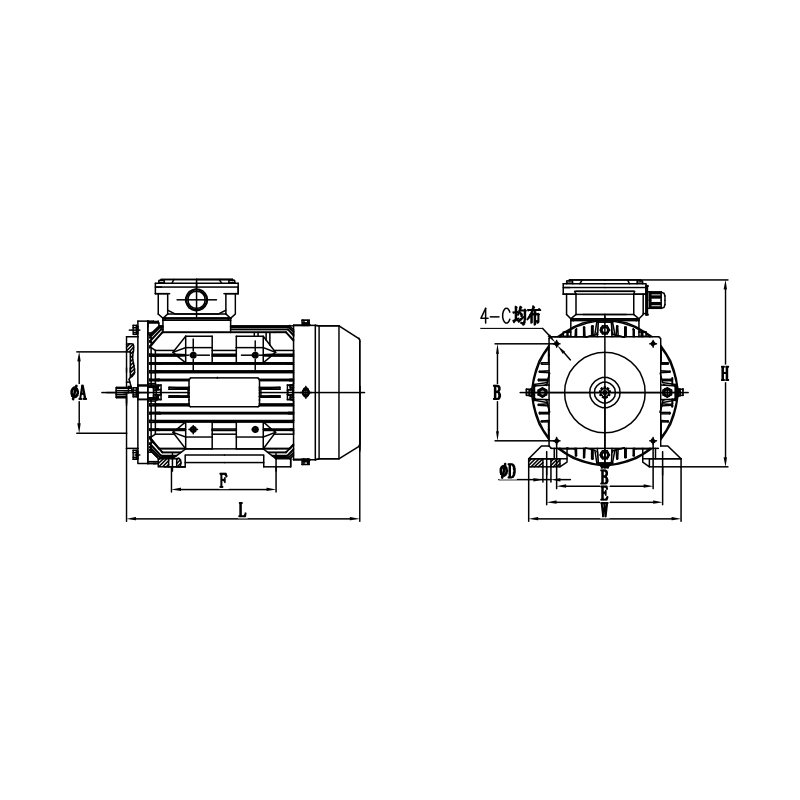

From an engineering practicality standpoint, the motor features a detachable foot mount design; this allows it to function either as a standalone unit for horizontal installation or to be conveniently integrated into vertical pump assemblies. For applications involving high-temperature operating environments, the insulation class can be optionally upgraded to Class H, endowing the system with a substantial thermal margin. Furthermore, the motor is equipped with a standard 113 x 113 mm flange interface, ensuring broad compatibility. Whether deployed in small cranes, tail lifts, or simple lifting mechanisms, this motor delivers a stable, low-loss hydraulic power flow to the system, distinguished by its high power factor (reaching up to 0.88) and robust surge resistance (with an Ist/In ratio reaching up to 7 times).
